Control Raspberry Pi GPIO using node-RED

simple gpio dashboard node-red flow

I wrote about how to control Raspberry Pi GPIO via web browser without using web framework or full blow web server about a year ago, today I’d like to introduce you an easier way to control Raspberry Pi GPIO via browser using node-RED.

When I published How to control Raspberry Pi GPIO via http web server in April 2018, I never expected it became number 2 of most popular post (see the “Most Popular Posts” sidebar on the right) a year later, my intention back to then was to demonstrate:

  • how the socket communication work? and,
  • how you could implement simple http over socket io?
  • no web framework or web server required;
  • with minimum dependency other than standard python library.

The implementation however may not be scalable if you need to control a lot of GPIO pins, or IoT sensors and devices, for that, you probably better to use a web framework such as Python Flask or Nodejs Express web framework. Although those frameworks are quite easy to implement or learn for those that already have some programming experiences, but for many Raspberry Pi users that came from hardware background or new to programming, it is still quite a steep learning curve. There is a better solution that not only easier to learn (you still need some JavaScript knowledge depending on the complexity of your project), but more importantly, easy to deploy by using Node-RED.

Node-RED and Installation

On Node-RED home page, it said Node-Red is a “flow-based programming for the internet of things” for wiring together hardware devices, APIs and online services using drag-and-drop pre-defined nodes via a browser-based editor, making it extremely easy for rapidly deploy a web-based application for controlling IoT devices and GPIO.

By default, Raspbian does not come with Node-RED installed. Node-RED is a nodejs application and therefore can be installed via npm package manager. However, if you install npm and nodejs via Raspbian linux package, you will noted that Raspbian will install a quite outdated nodejs version 8.11.1 (versus current latest nodejs version 10.15.1), npm is even older at version 1.4.21 (versus current latest npm of version 6.8.0). The best way to install Node-RED is to use the Node-RED installation script provided by Node-RED, the script not only install the Node-RED but also install or upgrade nodejs and npm to the latest version.

Simple GPIO Example

As this is not a Node-RED tutorial, I like to focus on how we could achieve same result as what I did in “How to control Raspberry Pi GPIO via http web server” using Node-RED.

simple_gpio.py

import RPi.GPIO as GPIO
import os

# Read data from Raspberry Pi (specifically read GPU temperature)
temp = os.popen("/opt/vc/bin/vcgencmd measure_temp").read()
print("GPU temperature is {}".format(temp[5:]))

# GPIO setup
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
GPIO.setup(18,GPIO.OUT)

# Turn on/off LED based on user input
try:
    while True:
        user_input = input("Turn LED On or Off with 1 or 0 (Ctrl-C to exit): ")
        if user_input is "1":
            GPIO.output(18,GPIO.HIGH)
            print("LED is on")
        elif user_input is "0":
            GPIO.output(18,GPIO.LOW)
            print("LED is off")
except KeyboardInterrupt:
    GPIO.cleanup()
    print("")

The python script  read Raspberry Pi’s GPU temperature by executing a linux command, it also turn on and off an LED that connect to GPIO18 (Raspberry Pi header physical pin 12). I will implement the same logic as the simple_gpio.py using Node-RED to achieve the same outcome for controlling the GPIO.

Create Node-RED flow for controlling GPIO

First, run Node-RED from your Raspberry Pi terminal:

node-red

Wait for node-RED a minute until you see the following message:

24 Feb 09:55:16 - [info] Starting flows
24 Feb 09:55:17 - [info] Started flows
24 Feb 09:55:17 - [info] Server now running at http://127.0.0.1:1880/

Launch your browser and point browser url to http://192.168.xxx,xxx:1880, please noted that the IP address should be Raspberry Pi’s IP address, if you are not sure the IP address of the Raspberry Pi, run the following command from terminal to find out:

hostname -I

What you see on the browser is Node-RED editor, you will see node palette on the left that consists of many pre-defined nodes by category, and info(the one with ‘i‘ icon)/debug(the one with bug icon) side bar on the right.  In the center is the canvas where we could create our flow.

Read Raspberry Pi GPU temperature

In order to read Raspberry Pi GPU temperature, as you remember from our reference code of simple_gpio.py, we will need to execute a linux command to get the result.

  1. Drag an “inject” node from the node palette to the flow, and open it by double clicking on it and uncheck the checkbox of “Inject once after 0.1 seconds, then” and click on Done button;
  2. Drag an “exec” node under the “advanced” category  from the palette to the flow, and edit the settings as shown below. This will setup the node to execute a bash command as /opt/vc/bin/vcgencmd measure_temp and return the output string as msg.payload;
  3. Connect the two nodes we created by dragging from the “inject” node output circle to “exec” node input circle to create a connection;
  4. To display the temperature, we will use a “debug” node to display the message payload. Go ahead drag a “debug” node to the flow and wire it to the “stdout” output of “exec” node.

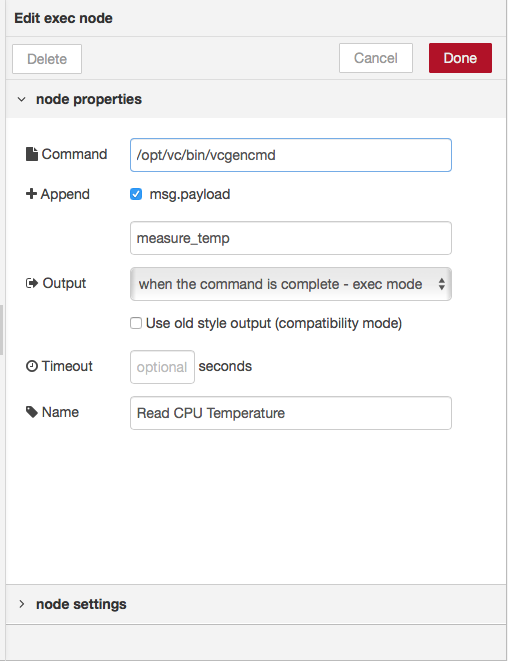

configure exec node
Setup exec node to get GPU temperature

We are done with the “programming” for displaying GPU temperature. Click on the debug icon on the right hand side sidebar, and click on the red Deploy button on the upper right corner of the browser. You should see the msg.payload output from the  “Debug” node.

Control LED via GPIO

We will use two “inject” nodes to turn on and turn off LED.

  1. Drag an “inject” node and set the Payload property to Number by clicking on the dropdown menu, and then set the value to 1. Remember to uncheck the “inject once…” checkbox;
  2. Drag another “inject” node and set the Payload property to Number and set its value to 0 for this one;
  3. Drag “rpi gpio” Output node (the one with a raspberry pi icon on the right is the output node) and set it to pin 12-GPIO18;
  4. Connect both “inject” nodes to “rpi gpio“.

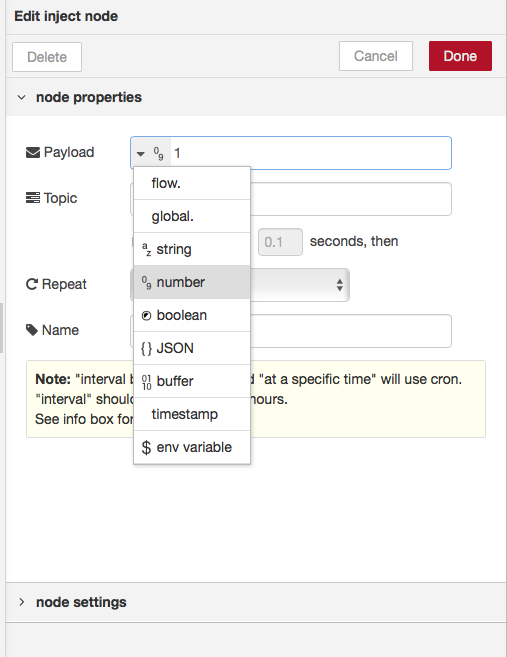

configure inject node as a switch
Setup inject node as a switch

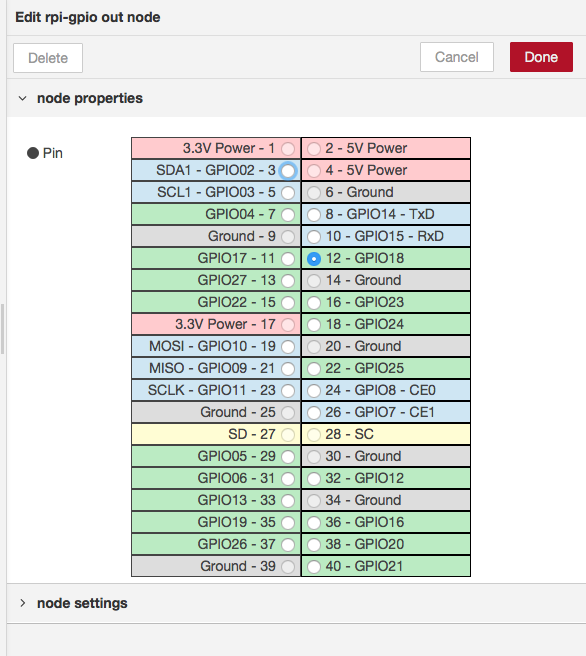

configure rpi gpio node
Setup rpi gpio node to control GPIO18

The final flow should looks like the picture below.

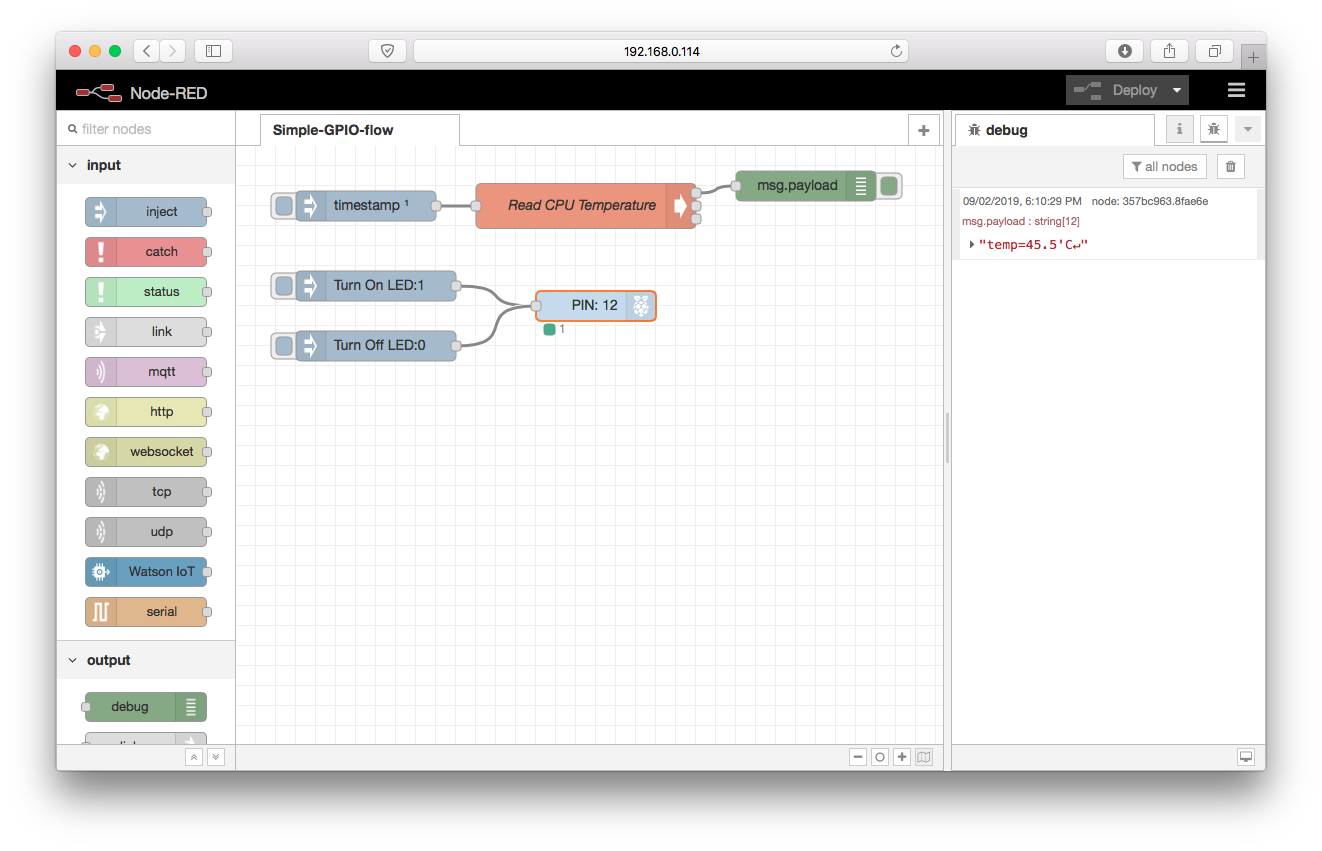

simple gpio flow
Simple-gpio-flow

Click on Deploy to run the flow. Click on the button on the left of each “inject” node will generate either 1 or 0 which will set the GPIO18 correspondently to turn on and off the LED.

We have achieved the same result as the simple_gpio.py did without writing a single line of code!

Control Raspberry Pi GPIO via Node-RED Dashboard

Although the node-RED flow that we created did achieved the result, but it is an editor page, it is not really a web page where user can use. Won’t it be better to have a graphical UI like the one shown below? sure, let’s do it.

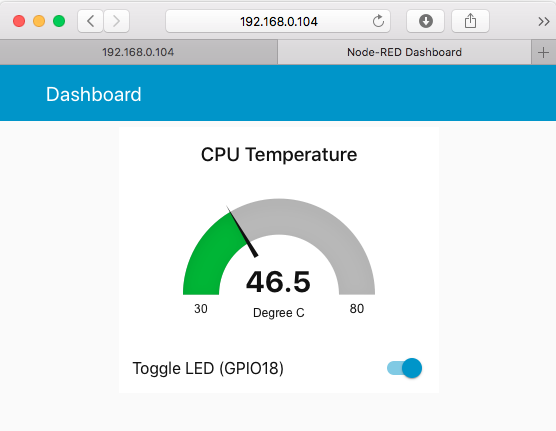

simple gpio dashboard
Simple GPIO Dashboard

What you seen requires Node-RED Dashboard, an add-on that you could installed via npm.   To install it, navigate to the user node-red directory which is at ~/.node-red or /home/pi/.node-redif you are running Raspberry Pi as pi user.

cd ~/.node-red
npm install node-red-dashboard

Node-RED dashboard can be access via http://192.168.xxx.xxx:1880/ui, however the path /ui is disabled by default, we need to change the setting at settings.js.  Use nano editor to make the change:

nano settings.js

Press ctrl-w or simple scrolling down to search for line with ui: { path: "ui" }and uncomment out the line by deleting the // in front of the line. Pressed ctrl-x to save the file.

If you had configured to run node-RED as a daemon service (i.e. auto-run at boot up), you will need to restart the node-red for the change to take on effect:

sudo systemctl restart node-red

But if you are running node-RED manually as we described in this article, you can ignore this restart command. Now let’s create our dashboard.

You will noticed that there is an newly installed “Dashboard” category on the node palette, these are the UI widgets can be displayed on the Dashboard. First, let’s create a new flow by clicking on the + icon on the right side of the flow tab.

  1. Drag a “gauge” dashboard node to the new flow that we just created, this will be used for displaying GPU Temperature;
  2. Double click on the gauge and click on the Edit (the little Pen icon) to “Add new ui_group”, and give it a name (e.g. “MyDashboard”), also name the dashboard screen as “Dashboard”, this will eventually displayed on the screen as page title;
  3. Set the temperature range, and other properties. In this example, we set minimum to 30 and maximum to 80, and set the Units as Degree C.
  4. Drag an “inject” node and an “exec” node into the flow, configure them and wire them together just like what we did previously;
  5. Drag a “switch” dashboard node to the flow and configure the UI_group to be same as the UI_group used by the gauge. The “switch” node will replaced the two “inject” nodes that we used to control the GPIO because the “switch” node can toggle between two statuses.
  6. Drag a “rpi gpio” output node and wire together with our new “switch” node.

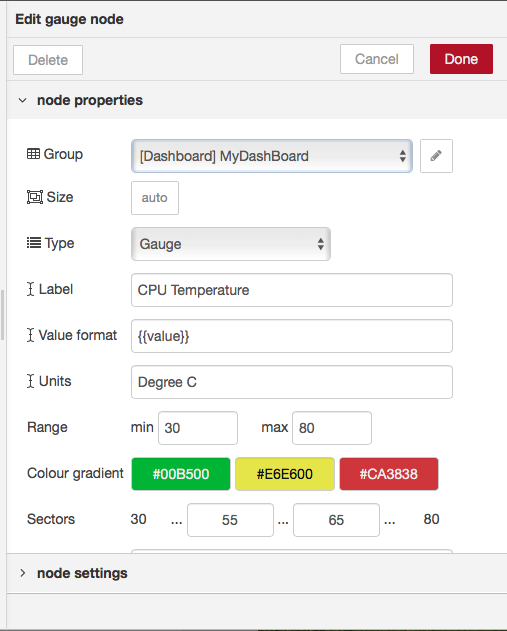

gauge configuration
Gauge configuration

As you may noticed from the previous example, the “exec” node return a string like temp:41.5'C as msg.payload. However the “gauge” is expecting a msg.value to be used as the temperature display for the gauge, not a string. So we will need to do some parsing between the “exec” node and the “gauge” display.  We can do that with a “function” node, the “function” allows us to write a JavaScript function to parse the string and return the temperature data as msg.value for the gauge to consume.

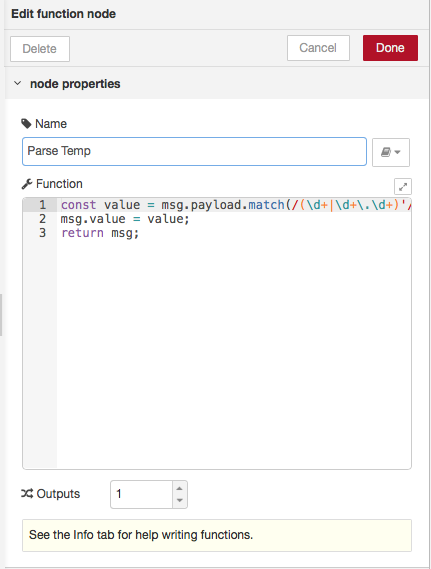

Function node for parsing temperature

The parse temp function in Javascript

const value = msg.payload.match(/(\d+|\d+\.\d+)'/)[1];
msg.value = value;
return msg;

Now we can insert the “function” node between the “wire” node and the “gauge” node and wire them up.

Point your browser to http://192.168.xxx.xxx:1880/ui, you should be able to see the Gauge and Toggle switch grouped within the same UI group. Click on the switch will toggle the LED on and off.

Final Words

Node-RED is a useful visual programming tool for application developer to quick create JavaScript application with minimum programming, this is particular useful for IoT applications and for those who are new to programming.

Node-RED flows can be imported and exported as an JSON document. You can find the flows that we created at my github page.
